Description:

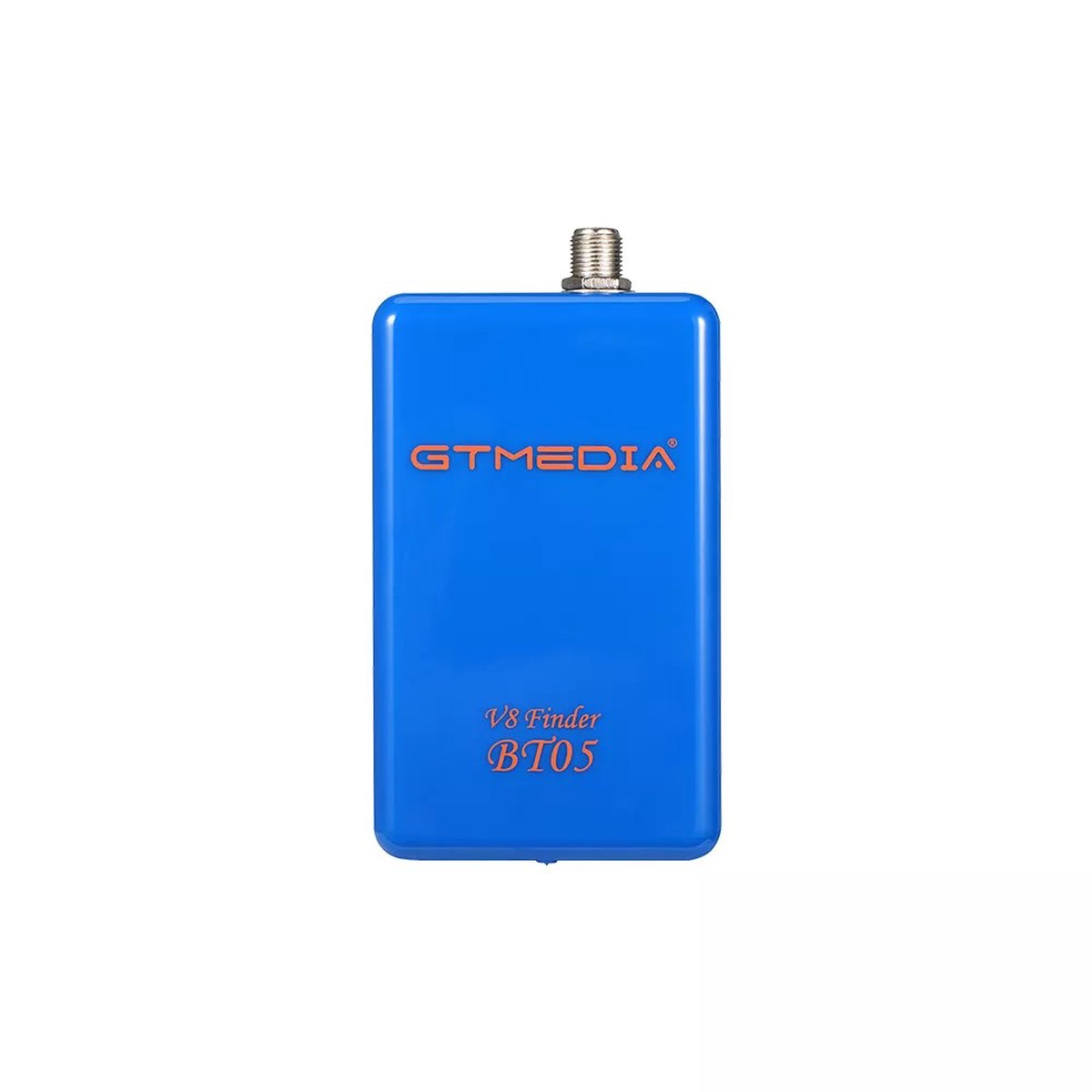

Product Specifications: GTMEDIA V8 Finder BT05 (Digital Satellite Finder) Primary Hardware: Flash Memory: 32MB Serial Flash DDR2 Memory: 512M Bits Bluetooth Indicator: Blinking Blue (Not connected), Solid Blue (Connected) Power: Green Indicator: Power status (Flashing indicates low power) Red Indicator: Charging status (Steady light indicates full charge) Rear Panel consists of: LNB IN: Frequency Range from 950MHz to 2150MHz (DVB-S/S2) OFF/ON Power Switch DC 5V 2A Charging Input System Information: DVB-S2 standardizes to ETS 302 307 (SCPC and MCPC receivable from C/Ku Band Satellite) Supports DiSEqC1.0, gives 13/18V DC @300mA MAX, inclusive of overload protection and 0/22K Decoding & Demodulation: Supports DVB-S2 CCM, QPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 and other variants Supports legacy DVB-S for QPSK+1/2, 2/3, 3/4, 5/6, 7/8 Supports VCM Mode and Dummy Frame Insertion Supports 1 to 60Mbaud Symbol Rates Includes Automatic Standard Recognition and a Fast Channel Blind Scan for RF Frequency & Symbol Rate Acquisition Lithium Battery Specifications: 18650 Lithium battery with 3.7V 2200mAh 8.14Wh Has approx. 2 hours working time, charges in about 2 hours (based on testing with the original 5V/2A adapter) Packaging Information: Product Dimension: 105 x 50 x 18 MM Packaged Size: 140 x 90 x 55MM Carton Size (60 pcs/ctn): 435 x 285 x 305MM Unit Weight with Gift Box: 0.2 kg Carton Qty & Weight: 60 pcs/Carton, 12.5 kgs Accessories: 1 DVB Finder BOX 1 Power Adapter 1 DC USB Cable 1 User Manual Operating Conditions: Temperature: Operation – 0 to +45; Storage – -10 to +60 Humidity: 20~90%, non-condensing Package Items: 1 x GTMEDIA V8 Finder BT05 Digital Satellite DVB-S2 Finder Meter 1 x Power Adapter 1 x DC USB Cable 1 x User Manual Other Features: DVB Finder DVB-S2 Multi standard demodulation & decoding Android APP and Apple APP connectivity via Bluetooth Supports complete satellite selection and fast channel blind scan for RF Frequency & Symbol Rate acquisition Enabled VCM mode and Dummy Frame insertion Built-in lithium battery 2200mAh Protection against LNB short circuit, overload indication Download the “V8 FINDER” app from APPs Store or Google Play for more functionalities.
