Description:

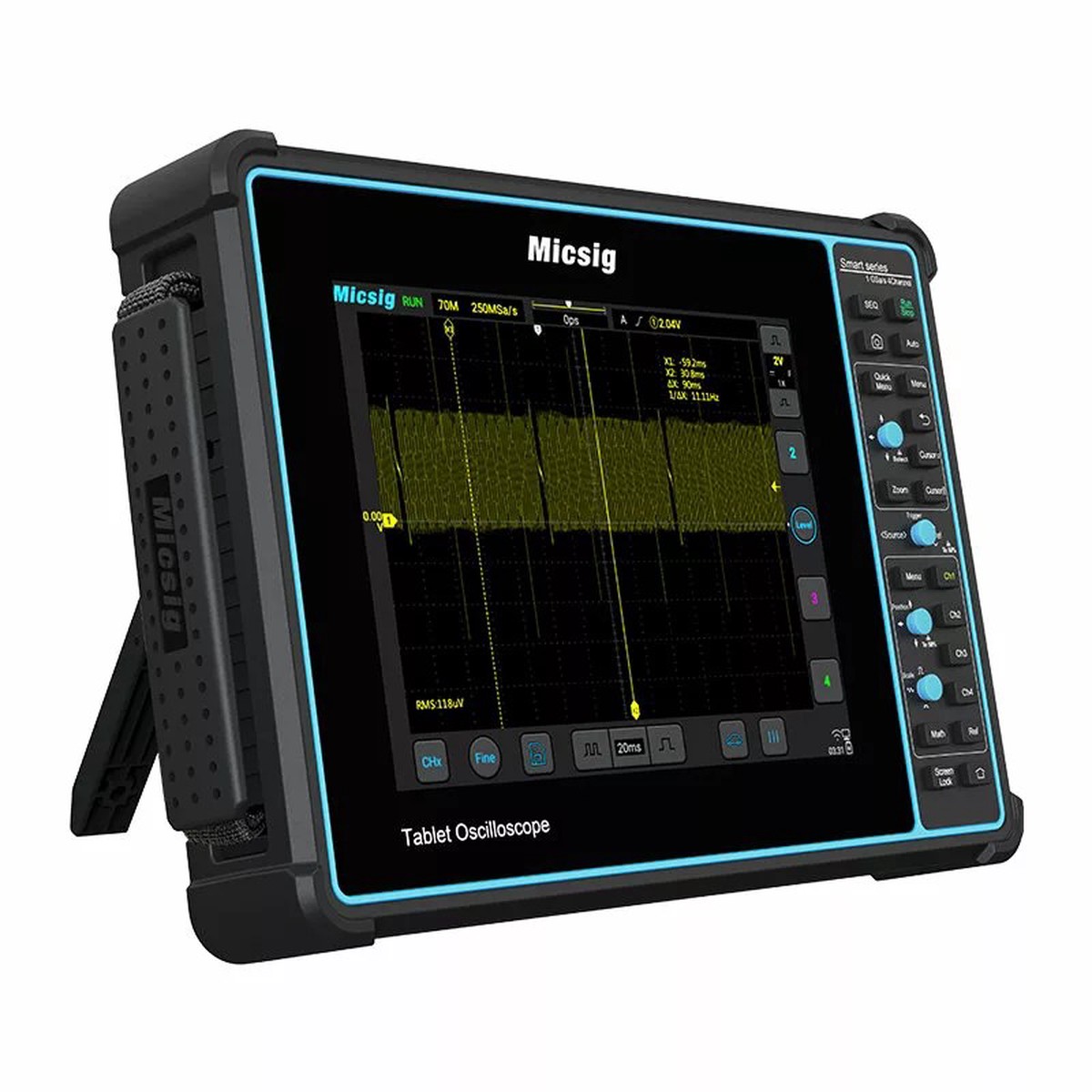

Professional Automotive Diagnostics in a Portable Tablet Design The Micsig SATO1004 Automotive Tablet Oscilloscope is a powerful all-in-one diagnostic tool designed for modern automotive testing and signal analysis. Combining a 4-channel oscilloscope, 100MHz bandwidth, and up to 1GSa/s real-time sampling rate, it delivers fast, accurate waveform capture for a wide range of vehicle electrical diagnostics. Built with a compact tablet-style touchscreen design, the SATO1004 offers excellent portability and ease of use in workshops, garages, and field service environments. It is ideal for testing charging systems, starter circuits, sensors, actuators, ignition systems, and automotive communication networks such as CAN, LIN, FlexRay, and K-line. With APP control support, HDMI output, and multiple connectivity options, this oscilloscope provides a flexible solution for both hands-on diagnostics and training demonstrations. Key Features 4 Independent Analog ChannelsMonitor and compare multiple signals at the same time for more efficient troubleshooting. 100MHz BandwidthSuitable for a wide range of automotive and electronic diagnostic applications. Up to 1GSa/s Real-Time Sampling RateCaptures signal changes with high precision for reliable waveform analysis. 70Mpts Memory DepthAllows longer waveform recording while preserving signal detail. 130,000 wfms/s Waveform Capture RateHelps detect intermittent faults and abnormal signal behavior more effectively. Portable Tablet Design with TouchscreenCompact, intuitive, and easy to operate in both workshop and mobile testing scenarios. Remote Control via PC or Smartphone AppConvenient for remote operation, data viewing, and analysis. HDMI Output for Training and DemonstrationIdeal for educational use, presentations, and team training. Built-in Rechargeable BatteryEquipped with a 7.4V 7500mAh Li-ion battery for portable use. Wide Automotive Test CoverageSupports diagnostics for: Charging circuits Starter circuits Sensors Actuators Ignition systems Vehicle networks including CAN, LIN, FlexRay, and K-line Combination tests Specifications Model: SATO1004 Analog Channels: 4 Bandwidth: 100MHz Max Sampling Rate: 1GSa/s (single channel) Memory Depth: 70Mpts (single channel) Max Waveform Capture Rate: 130,000 wfms/s Bandwidth Filter: Full bandwidth, Low pass Display: 8″ Industrial TFT-LCD, 800 600 resolution, 14 10 grids Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger Out Battery: Built-in 7.4V 7500mAh Li-ion battery Dimensions: 265 192 50mm Net Weight: 1.9kg (with battery) Package Includes 1 SATO1004 Automotive Tablet Oscilloscope 1 Power Cord 1 Adapter 2 Pairs Alligator Clips 2 Pairs Soft Pin Probes 4 BNC to Banana Leads 2 Passive Probes Why Choose the Micsig SATO1004? The Micsig SATO1004 is designed for users who need a portable yet capable automotive oscilloscope with advanced diagnostic features. Its multi-channel design, fast sampling performance, and touchscreen tablet format make it a practical choice for professional technicians, automotive electricians, repair shops, and advanced enthusiasts. Whether you are diagnosing complex sensor signals, checking ignition waveforms, or analyzing vehicle network communication, the SATO1004 provides the performance and flexibility needed for efficient and accurate testing.
